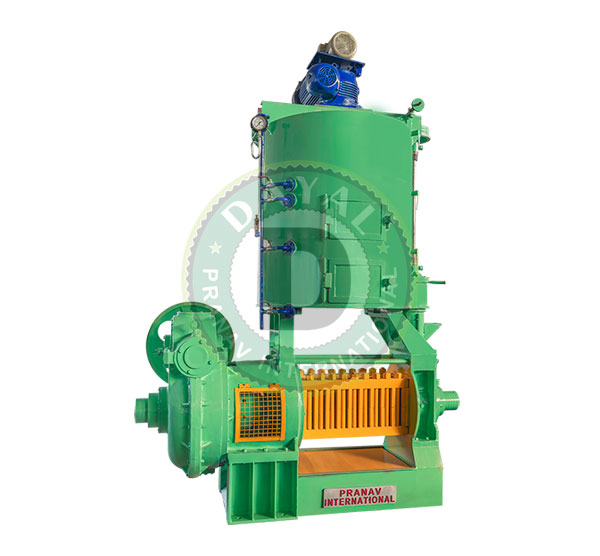

Dayal 53, 503, 530 & 620
Features :
- Double Reduction Gear Box of Cast Iron body and Steel fabricated Gears.
- The Machine has to stopped for adjusting the cake thickness.
- Case hardened worm assembly and cone point.
- Main Worm Shaft can be withdrawn without disturbing the Gear Box.
- Crammer Shaft gives extra cramming of the Seed or Cake in the Feed Body.
- Superior quality of oil & cake.
- Steel Fabricated base.
- Low Maintenance.
- Cooking Kettle: 3 & 4 stage vertical unit with fabricated shell, level indicator flap, centre shaft driven by press motor, steam inlet, condensate outlet & all necessary accessories.
TECHNICAL SPECIFICATION
| MODEL | DAYAL 53 | DAYAL 503 | DAYAL 530 | DAYAL 620 |
| Size of Chamber & Worm | 48″ x ø 6.5″ | 48″ x ø 7″ | 48″ x ø 8″ | 55x11x9 |
| Dimension (LxB) in MM | 3810x1219 | 3810x1219 | 3810x1219 | 4210x1219 |
| Power (in H.P.) | 50H.P.x1440RPM | 50H.P.x1440RPM | 50H.P.x1440RPM | 75H.P.x1440RPM |
| Gear Box | Double Reduction Gear Box | Double Reduction Gear Box | Double Reduction Gear Box | Double Reduction Gear Box |
| Material | Cast Iron & Mild Steel | Cast Iron & Mild Steel | Cast Iron & Mild Steel | Cast Iron & Mild Steel |
| Weight in (Kgs) | 5100Kgs. | 5100Kgs. | 5100Kgs. | 5500Kgs. |
| Capacity | 25 TPD | 30 TPD | 35 TPD | 40 TPD |
TPD means ton per day, Oil seeds crushing capacity may differ with the density of oil seeds & nuts and quantity of oil in it.
